How to create and manage private networks with the DreamCompute Dashboard

Private networking is a useful feature that customers may wish to utilize for advanced cloud setups. For a description of private networking and how to enable it, please review the What is private networking article. In this article, the decisions needed for adding a private network, and how to add the private network while using the DreamCompute dashboard are covered.

Private network options

Once Support has confirmed the network quota has been adjusted, the private network can be added. Please review the below options to determine settings for the private network.

Network block

There are various private network blocks that are available for use with private networks, and are specified in CIDR format. Common examples of this are 10.0.0.0/24 or 192.168.0.0/24, however there are other networks to choose from as well. In the example below, we use 10.0.0.0/24.

DHCP

When a subnet is defined, DHCP can be set enabled or disabled, and can be changed later if desired. When DHCP is enabled, newly created instances run cloud-init at start and detect it, and therefore determine it isn’t necessary to hard-code network settings into the operating system. If it is disabled, then these settings are hard-coded. Having DHCP enabled can help with creating snapshots and new instances from those snapshots, as the snapshots won’t have hard-coded network configs in them. However, older versions of cloud-init fail to boot entirely when DHCP is enabled.

As of October 2016, only Centos 6, and all Ubuntu versions have a version of cloud-init that supports DHCP. If you plan to use a different operating system, please consider disabling DHCP.

Adding the private network

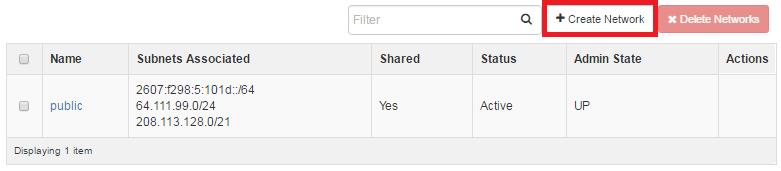

  1. Begin creating a network:

    ../../_images/network-01.png

    Launch the DreamCompute dashboard, and navigate to the Network -> Networks menu. Click on the “+ Create Network” button on the top right.

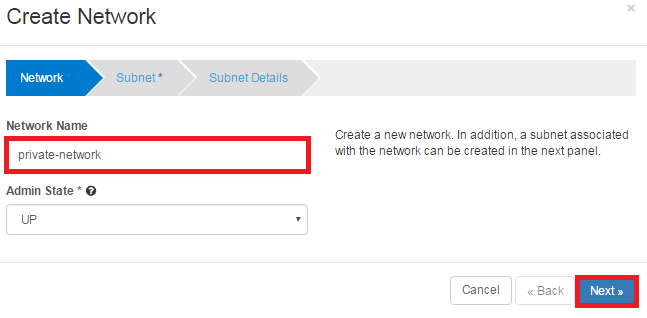

  2. Enter network information:

    ../../_images/network-02.png

    A new window appears. Enter a name for the network such as “private-network”. Then, click the “Next” button.

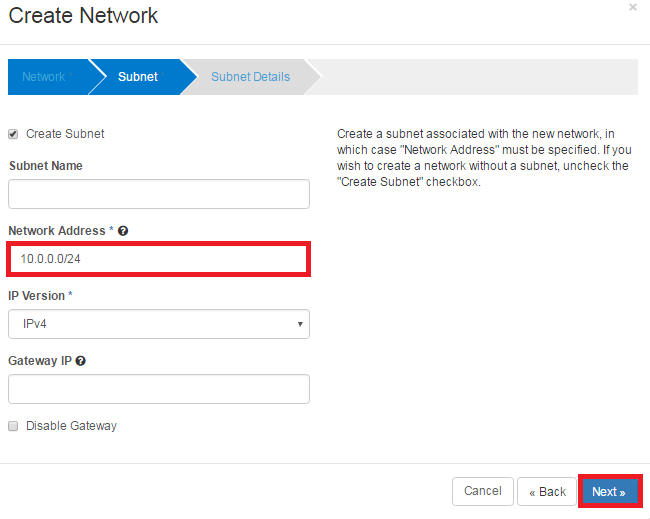

  3. Enter subnet information:

    ../../_images/network-03.png

    On the Subnet tab, enter the above determined CIDR for the private network into the “Network Address” field. An optional Subnet name can be specified if desired. Then, click the “Next” button.

  4. Enter subnet details:

    ../../_images/network-04.png

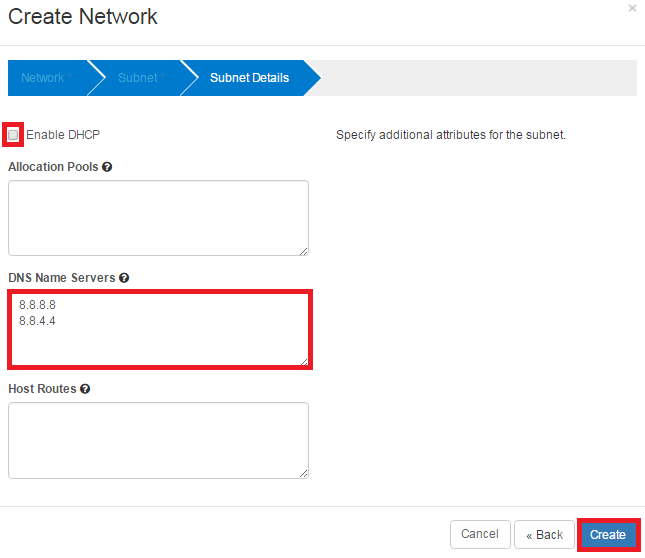

    On the Subnet Details tab, check or uncheck the “Enable DHCP” checkbox depending on the decision made in the DHCP section above. In the “DNS Name Servers” field, enter the values 8.8.8.8 and 8.8.4.4 on their own lines. Finally, click the “Create” button.

  5. Begin creating a router:

    ../../_images/network-05.png

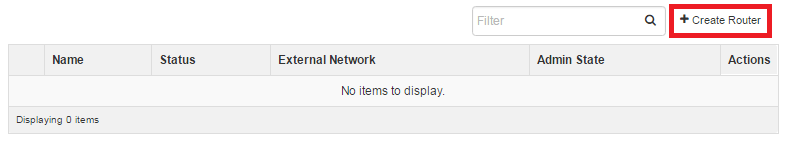

    Navigate to the Network -> Routers menu. Click on the “+ Create Router” button on the top right.

  6. Enter router information:

    ../../_images/network-06.png

    A new window appears. Enter a name for the router such as “private-router”, and select “public” from the “External Network” drop-down. Finally, click the “Create Router” button.

  7. Begin adding a router interface:

    ../../_images/network-07.png

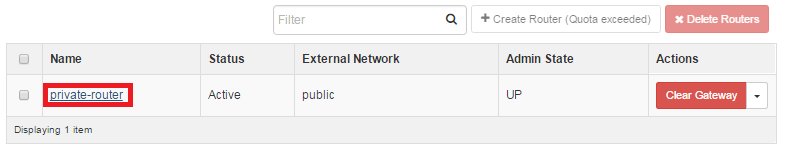

    Once the router is displayed, click on the routers name to navigate to the router details page. Click on the “Interfaces” tab that is displayed on the top left.

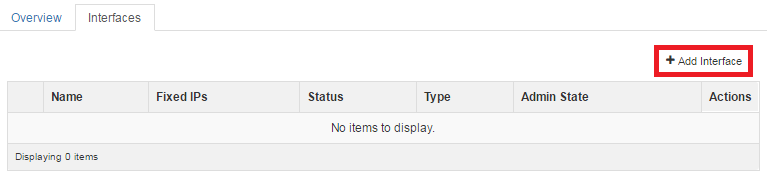

  8. Add an interface:

    ../../_images/network-08.png

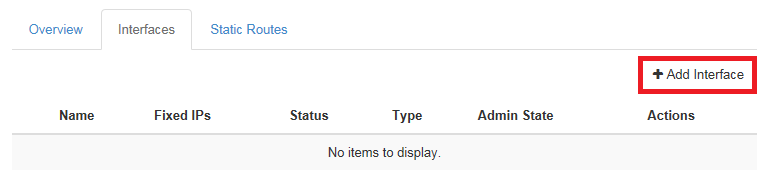

    Click on the “+ Add Interface” button on the top right.

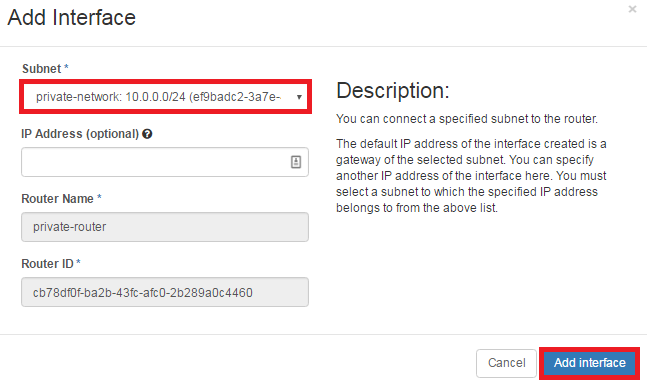

  9. Enter interface information:

    ../../_images/network-09.png

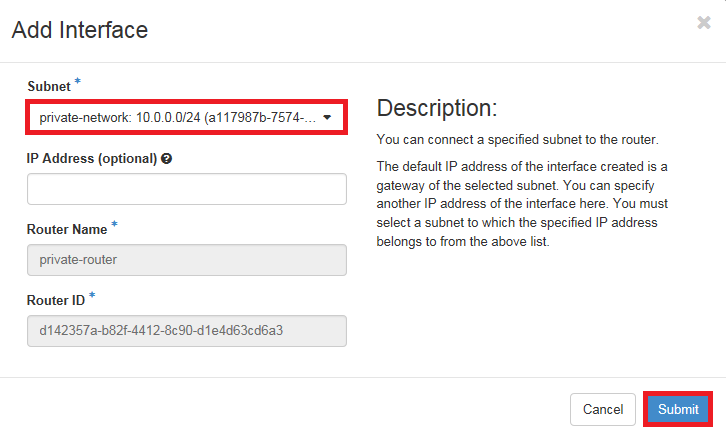

    In the “Subnet” drop-down, select the private network created in steps #1-4 above. Finally, click the “Add Interface” button.

Using the private network

This completes the process of adding a private network to the account. To select the private network and add a floating IP address, follow the additional steps below.

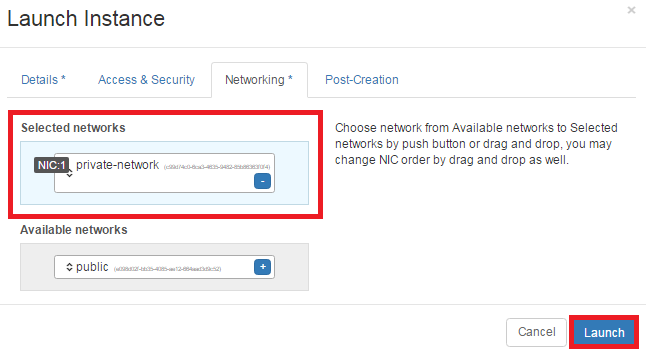

  1. Begin adding an instance:

    ../../_images/network-10.png

    Navigate to the Compute -> Instances menu. Click on the “Launch Instance” button on the top right. Complete the “Details”, “Access & Security” and “Post-Creation” tabs as normal. In the “Networking” tab, click the “+” button to add the private network to this instance. Finally, click the “Launch” button to launch the instance.

  2. Begin floating IP association:

    ../../_images/network-11.png

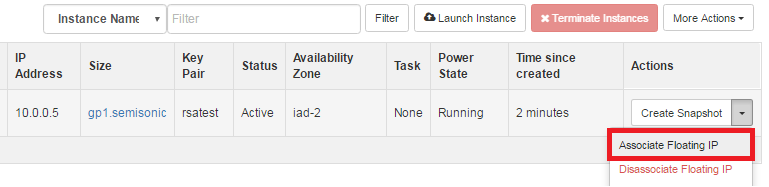

    In the right drop-down menu beside the instance, click the down arrow to expand it and select “Associate Floating IP”.

  3. Provision a floating IP address if needed:

    ../../_images/network-12.png

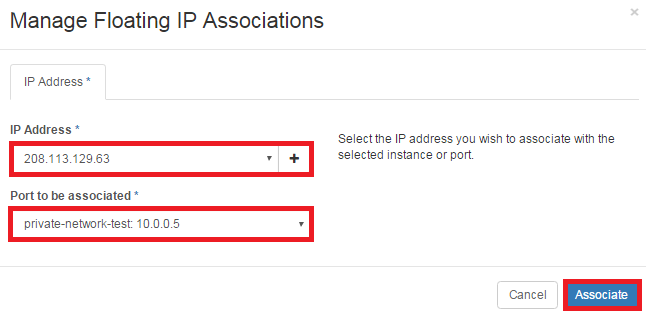

    If a floating IP has not yet been provisioned, click the “+” button to do so. The provision window has only one “Pool” available named “Public” to select, and an “Allocate IP” button to complete the process. Select an available floating IP from the “IP Address” drop-down, and the private IP address of the above instance in the “Port to be associated” drop-down. Finally, click the “Associate” button.

  4. Verify floating IP assignment:

    ../../_images/network-13.png

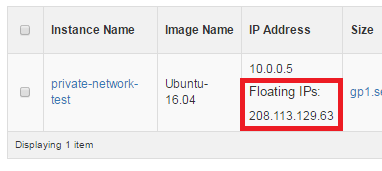

    The floating IP address assigned appears on the Compute -> Instances page in the “IP Address” column.
