How to create and mount volumes on DreamCompute

Introduction

DreamCompute, like other OpenStack clouds, have multiple kinds of storage available to them. The type we will deal with here is called “volume” storage and it is recommended for storing critical and important data. For more info on the types of storage, please visit the article on differences between ephemeral and volume storage.

Volumes can be thought of like a hot-swap hard disk, in that you can pull it out of one system (detach it), plug it into another system (attach it) and the data will remain on it as it is reused.

There are several ways to do the initial steps of creating and attach the volume, so please select the method you wish to use:

Create and Attach a Volume via Dashboard

The first step is to make sure you have sufficient volume storage quota to add a new volume. Check the DreamCompute dashboard project overview page and the Volume Storage pie chart.

../../_images/volume-storage-quota.png

If you need additional storage, more can be added in the DreamHost control panel.

To create the new volume, in the DreamCompute dashboard volumes page click the Create Volume button on the top right and give the volume a required size in GB, and an optional name and description while leaving the other options set to the defaults.

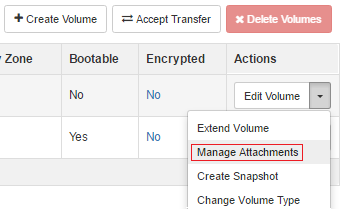

To use your volume, it now needs to be attached to a running instance. If you have no instances, please create one. In the DreamCompute dashboard, again on the volumes page, you can click the drop-down menu and select Manage Attachments:

../../_images/volumes-attach-button.png

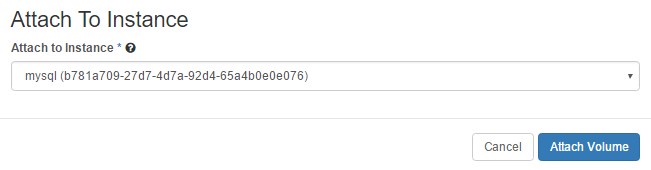

The new window will show no attachments at this time, and at drop-down with a list of your instances. Click on the list and select your instance name, then click Attach Volume.

../../_images/volumes-attach-to-instance.png

This completes the creation of the volume. Please click below to continue with creating your file system and mounting the volume.

Create and Attach a Volume via openstack CLI

The first step is to make sure you have sufficient volume storage quota to add a new volume. Run the following command to determine this:

[user@localhost]$ cinder quota-usage TENANTID

which will output a table like so:

+----------------------+--------+----------+-------+
|         Type         | In_use | Reserved | Limit |
+----------------------+--------+----------+-------+
|   backup_gigabytes   |   0    |    0     |  1000 |
|       backups        |   0    |    0     |   10  |
|      gigabytes       |  50    |    0     |  100  |
| per_volume_gigabytes |   0    |    0     |   -1  |
|      snapshots       |   1    |    0     |   64  |
|       volumes        |   1    |    0     |   64  |
+----------------------+--------+----------+-------+

You would want to check the “gigabytes” row, and that the column “In_use” was lower than the “Limit” column.

If you need additional storage, more can be added in the DreamHost control panel.

To create the new volume, run this command:

[user@localhost]$ cinder create SIZE_IN_GB --display-name NAME --display-description "Description here"

with optional extra parameters being display-name and display-description.

The volume should now show up in the dashboard, and on the command line:

[user@localhost]$ cinder list

To use your volume, it now needs to be attached to a running instance. If you have no instances, please create one. Using the CLI requires the instance name and the UUID of the volume. Find the volume details by running:

[user@localhost]$ cinder --os-volume-api-version 2 list
+--------------------------------------+-----------+------+------+-------------+----------+-------------+--------------------------------------+
|                  ID                  |   Status  | Name | Size | Volume Type | Bootable | Multiattach |             Attached to              |
+--------------------------------------+-----------+------+------+-------------+----------+-------------+--------------------------------------+
| 26c25d21-cff5-4154-affa-a1c2d9517e32 |   in-use  |  -   |  50  |      -      |   true   |    False    | b781a709-27d7-4d7a-92d4-65a4b0e0e076 |
| 8edfb18b-6b4b-424e-a172-cbded3aad148 | available |      |  1   |      -      |  false   |    False    |                                      |
+--------------------------------------+-----------+------+------+-------------+----------+-------------+--------------------------------------+

In this example the instance is called “mysql” and there is only one “available” volume, the one we created. Once you have your values, you can attach the volume with:

[user@localhost]$ nova volume-attach mysql 8edfb18b-6b4b-424e-a172-cbded3aad148 auto
+----------+--------------------------------------+
| Property | Value                                |
+----------+--------------------------------------+
| device   | /dev/vdb                             |
| id       | 8edfb18b-6b4b-424e-a172-cbded3aad148 |
| serverId | b781a709-27d7-4d7a-92d4-65a4b0e0e076 |
| volumeId | 8edfb18b-6b4b-424e-a172-cbded3aad148 |
+----------+--------------------------------------+

Note

The device name listed may not always be accurate, so double-check before using a new device.

Create a File System

The new drive now needs a file system so that it can store data. There are many choices when it comes to file systems, but for this example we’ll use a safe default of ext4.

Now connect to your instance with the default username for your image.

Note

Instances created before October 5th, 2016 will continue to have “dhc-user” as the default user, except for CoreOS, which will have “core” as the default user.

  • Ubuntu: ubuntu
  • Fedora: fedora
  • Debian: debian
  • CentOS: centos
  • CoreOS: core

We first need to find the device name for our new volume. You can see what devices are available by checking for /dev/vd* device files:

[user@server]$ ls /dev/vd*
/dev/vda  /dev/vda1  /dev/vdb

Generally /dev/vda will be the boot drive, and in this case /dev/vdb appears to be the new volume. You can double check the size matches with the command:

[user@server]$ sudo fdisk -l /dev/vdb
Disk /dev/vdb: 1 GiB, 1073741824 bytes, 2097152 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes

This matches the 1GB size of the volume I created. Now, to create a file system on the drive, run the mkfs command.

Note

This command is destructive! If ran on the wrong device, it will erase it so please be sure you have it correct!

[user@server]$ sudo mkfs.ext4 /dev/vdb
mke2fs 1.42.13 (17-May-2015)
Creating filesystem with 262144 4k blocks and 65536 inodes
Filesystem UUID: 51751b87-a583-42b3-8d61-27ed586ba8da
Superblock backups stored on blocks:
        32768, 98304, 163840, 229376

Allocating group tables: done
Writing inode tables: done
Creating journal (8192 blocks): done
Writing superblocks and filesystem accounting information: done

The file system is now created.

Mount the File System

As mentioned before, the device for the drive can change should udev or other changes happen, and such an error can prevent your instance from booting up properly. To avoid this, we will boot via UUID. You can find the drives UUID by running the blkid command:

[user@server]$ sudo blkid /dev/vdb
/dev/vdb: UUID="51751b87-a583-42b3-8d61-27ed586ba8da" TYPE="ext4"

If you wish to mount this volume in a location that doesn’t exist, go ahead and create the directory with mkdir:

[user@server]$ sudo mkdir -p /mnt/backups

With this info we can now modify /etc/fstab to have it auto mounted. Edit it with your preferred editor, which in this example will be vim, and add a line towards the bottom like so:

UUID=51751b87-a583-42b3-8d61-27ed586ba8da   /mnt/backups   ext4   defaults   0   2

Once that is added, you can test your setup with:

[user@server]$ sudo mount -a

If all succeeded, you should see no output or only output about the file system. You can check that all is well with “df”:

[user@server]$ df -h /mnt/backups
Filesystem      Size  Used Avail Use% Mounted on
/dev/vdb        976M  1.3M  908M   1% /mnt/backups

Checking specifically for the /dev/vdb device at the front.

That’s it! When you reboot your instance, your volume will be re-mounted and ready for use, if you need to reboot.
